"Don't believe anything I say; learn about what I say and prove it to yourself!"
by Tracy Jones

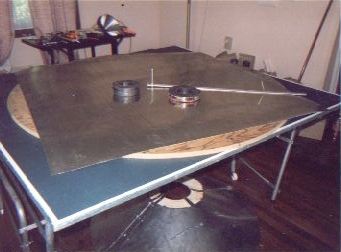

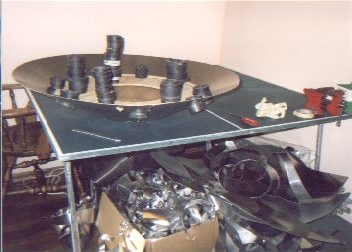

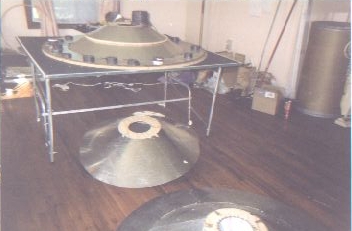

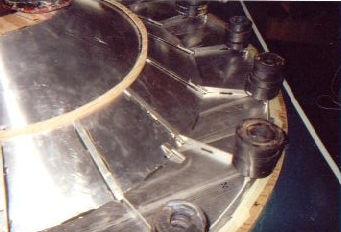

The first is laying out another sheet and marking it for another cone. Second inserting another round rib for reinforcement and using part of a left over piece to help keep it in place until glue dries. The box under the table I keep all my scraps. The third shows how I made the ribs for the top of the third cone which fits within two inches of the number two cone below it. I formed the one inch strips by twisting the ends at the angle shown and then glued them with the special epoxy to the cones and wings. The magnets were used as weights. You have to remember that I had no diagram to speak of to go by, only what I had seen David do, and the experience of my first two machines. This is my own design, within the allowable limits set by David as to shape and function. It was the overall size that was not the same. The fourth shows two cones almost ready and a third waiting for further assembly. The drum against the wall was the drum frame I used in my 55-gal drum experiment which Justin now has.
 |
 |
 |
 |
|
|
|
